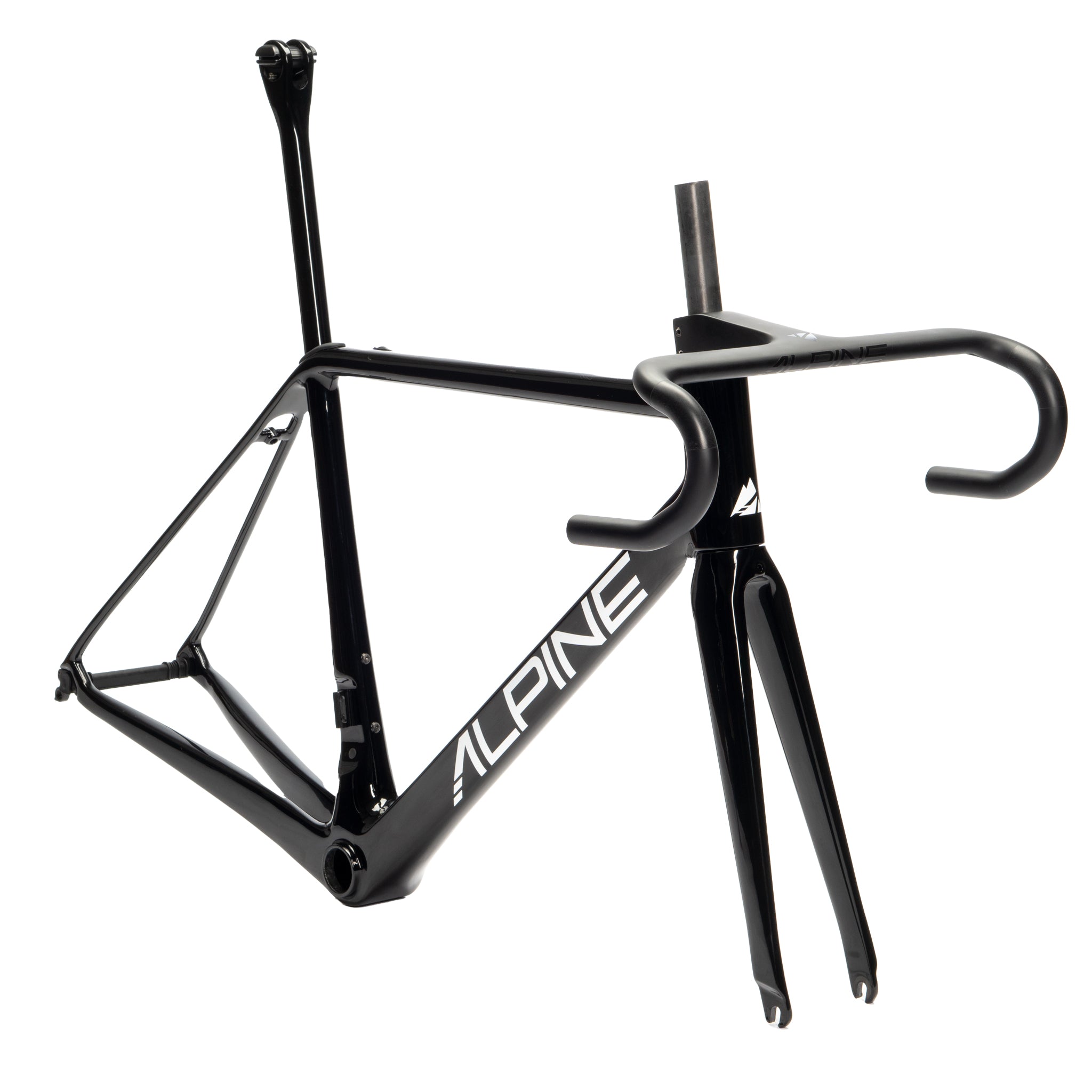

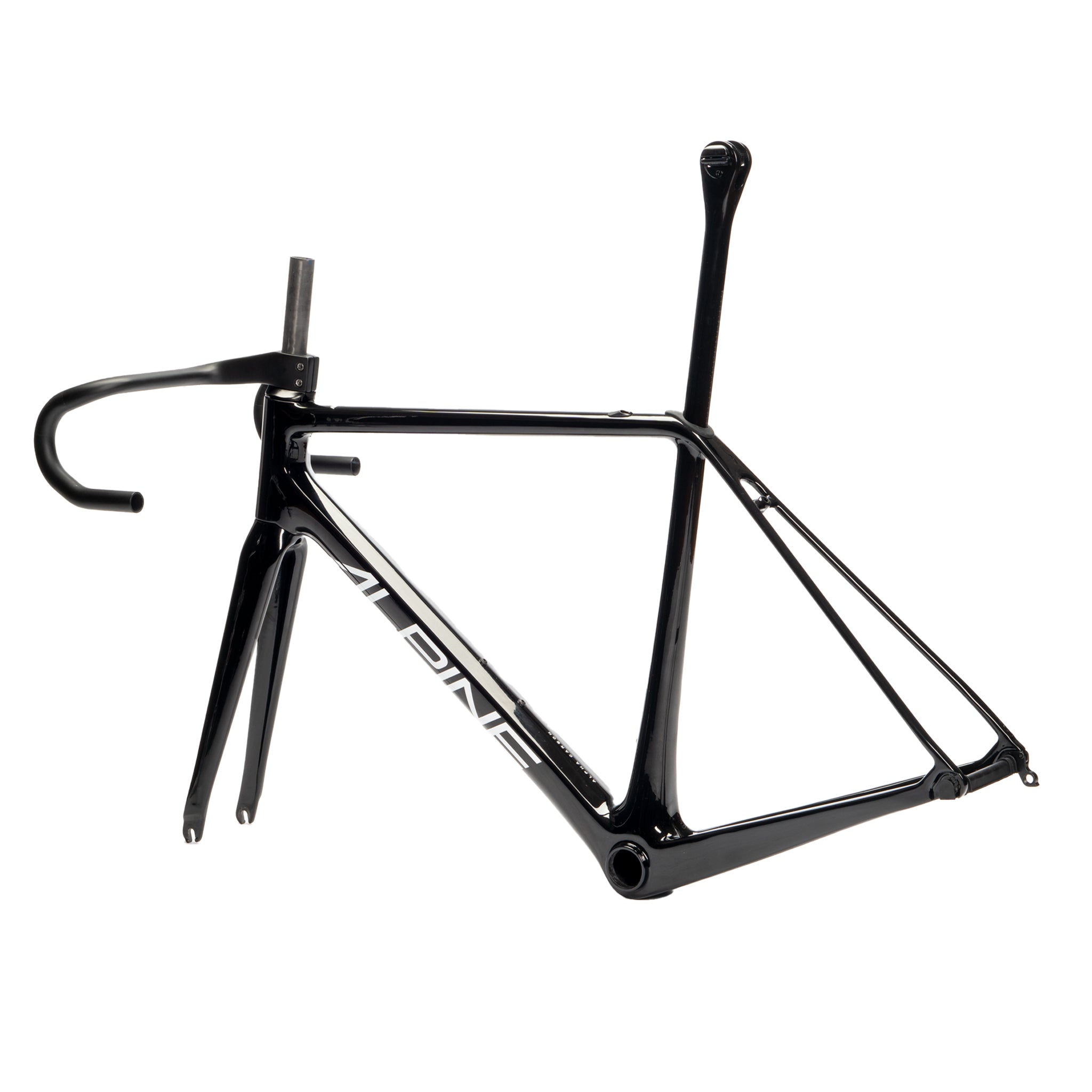

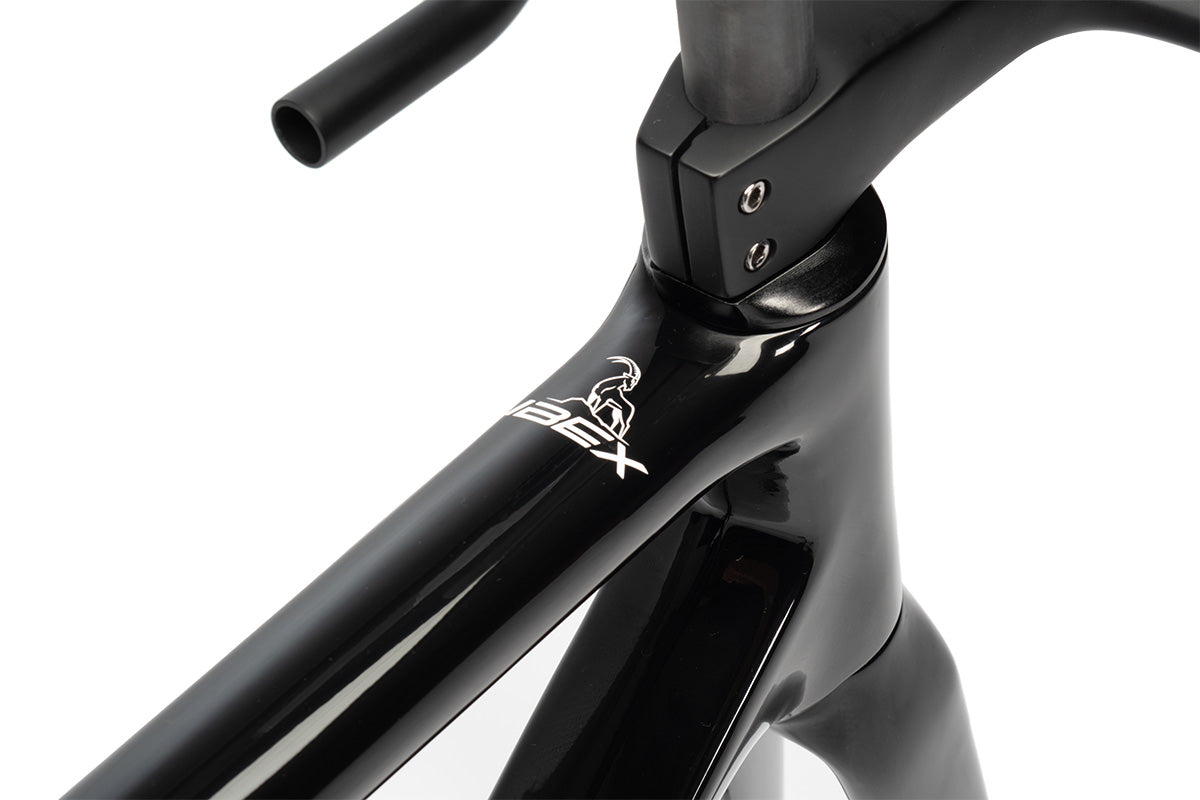

Ibex Road Frameset - Rim Brake
Frame details
Headset: 1.5in-1.5in
Bottom bracket: BB86
Seatpost: 15mm offset | 0mm offset
Max tire size: 28mm
Handlebar options
Length: 90mm, 100mm, 110mm, 120mm, 130mm
Width: 380mm, 400mm, 420mm, 440mm
|
Size
|
50
|
52
|
54
|
56
|
|
Reach
|
370
|
375
|
380
|
389
|
|
Stack
|
509
|
528
|
548
|
572
|
|
Top Tube (effective)
|
526
|
536
|
548
|
564
|
|
Seat Tube C-T
|
529.5
|
551.5
|
573
|
598
|
|
Head angle
|
71
|
72
|
73
|
73
|
|
Seat angle
|
73
|
73
|
73
|
73
|
|
Head tube
|
105
|
122
|
140
|
165
|
|
Chain stay
|
410
|
410
|
410
|
410
|
| Wheelbase | 972 | 974 | 976 | 993 |
| Front center | 573 | 575 | 577 | 594 |
| BB drop | 72 | 72 | 72 | 72 |
| Fork Rake/Offset | 45 | 45 | 45 | 45 |
| Trail | 57 | 57 | 57 | 57 |
