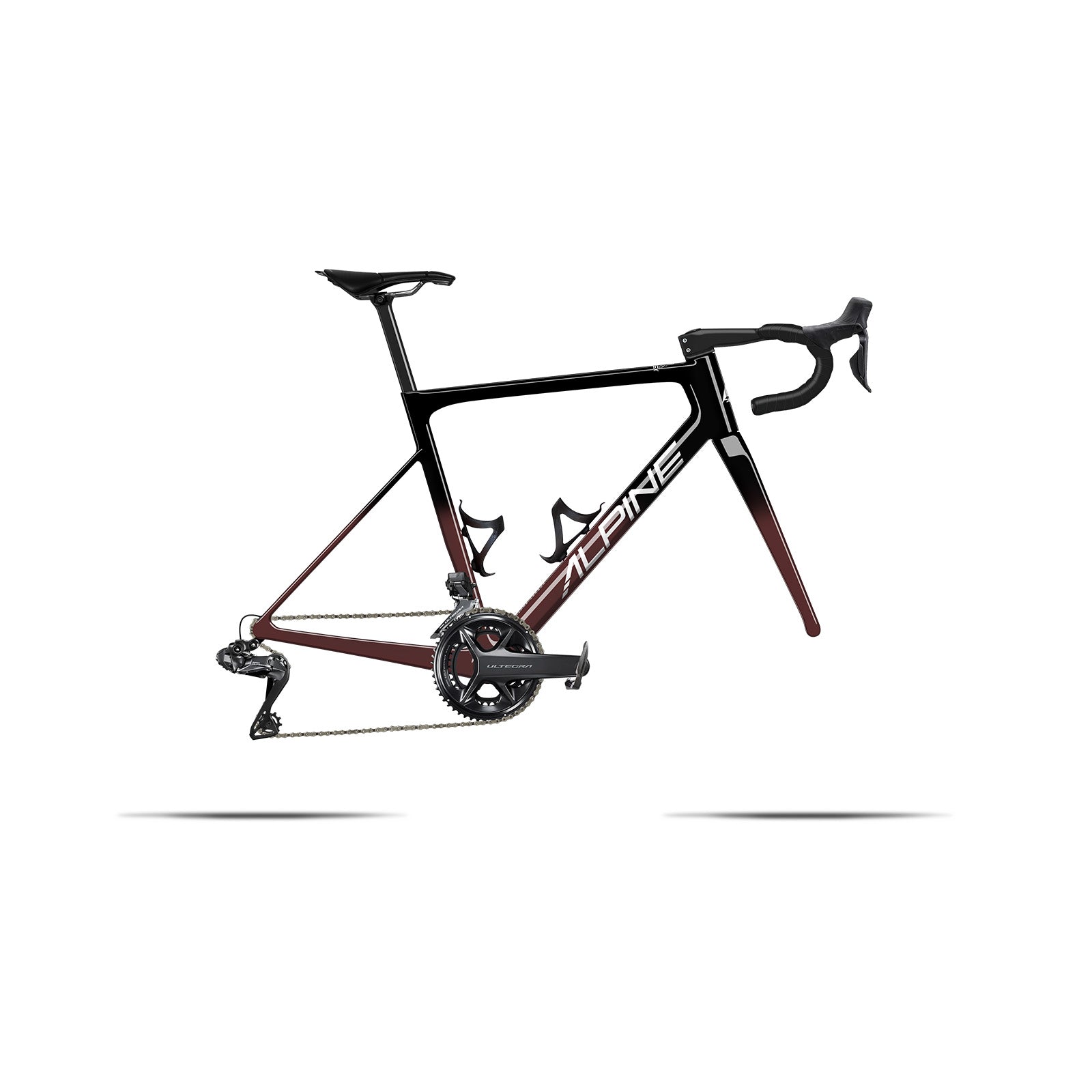

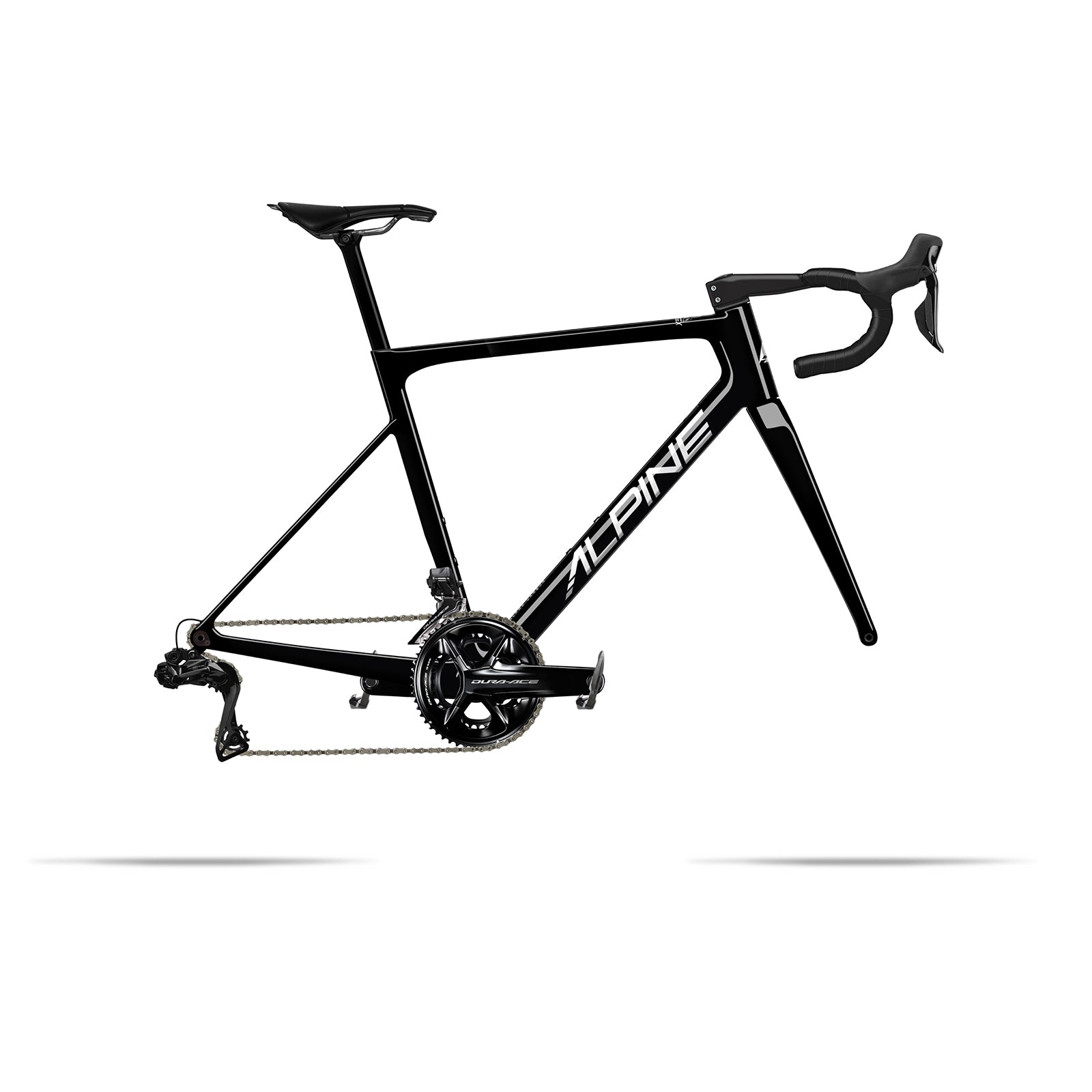

Ibex Disc Frameset
Our flagship product is purpose-built for the rider who likes modern performance, timeless styling, and a sporty ride. Speed on the flats, aggressive in the corners, momentum on the climbs.
Frame
Alpha Carbon™ layup design, Fully integrated, BB86 bottom bracket, 12x142mm thru-axle, flat-mount disc,
Fork
Carbon, 12x100mm thru-axle, flat-mount disc
Integrated handlebar
Reach 80mm, Stem angle -10°, Drop 125mm, Headset spacers
Seatpost
Carbon D-shape, 400mm, Single-bolt seat clamp, Integrated seat-post clamp
Drivetrain compatibility
Optimized for electronic groupsets, Shimano Di2 12spd/11spd, Sram Etap, Compatible with mechanical groupsets.
Tire clearance
Optimized for 32mm, Max 35mm. Measured tire width will vary depending on wheel and tire combination.
Included accessories
Alpine carbon water bottle cages (x2), Headset assembly with integrated spacers.
| Size | S | M | L | XL |
|---|---|---|---|---|
| Reach | 379 | 386 | 388 | 393 |
| Stack | 527 | 538 | 564 | 580 |
| Top Tube (effective) | 525 | 540 | 555 | 570 |
| Seat Tube C-T | 460 | 490 | 520 | 540 |
| Head Angle | 71.5° | 72° | 72.5° | 73° |
| Seat Angle | 74.5° | 74° | 73.5° | 73° |
| Head Tube | 115 | 130 | 150 | 170 |
| Chainstay | 410 | 410 | 410 | 410 |
| Wheelbase | 983 | 990 | 995 | 1000 |
| Front Centre | 583 | 589 | 595 | 600 |
| BB Drop | 72 | 72 | 72 | 72 |
| Fork Length (A2C) | 380 | 380 | 380 | 380 |
| Fork Rake / Offset | 45 | 45 | 45 | 45 |
| Seatpost Length | 400 | 400 | 400 | 400 |
At Alpine Bikes, we are committed to providing our customers with high-quality products that are built to last. We understand that accidents happen, and that's why we offer a 3-year limited warranty on all of our carbon fiber bicycles and components. This warranty is designed to give you peace of mind and ensure that your investment is protected. Learn more
After selecting the Custom paint color option, our team will reach out to you after purchase for an initial consultation. During this phase, we'll discuss your vision, preferred color schemes, design ideas, and any specific elements you'd like to incorporate into your bike's new look. Learn more
All packages are insured for their full value, so you can rest assured that your order is protected. When your order is delivered, our logistics partner will require signature to ensure that the package is delivered to the correct recipient.
